Technical parameters:
Maximum load capacity per hinge: 7 kg
Maximum opening angle: 180°
Minimum door panel thickness: 18 mm

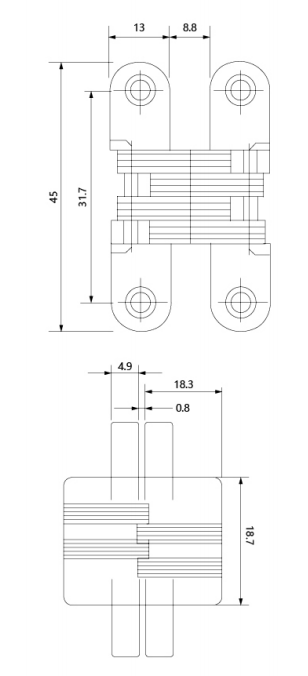

Product dimensions: 45x13mm
Primary materials: Zinc alloy body + stainless steel core
Surface finishes: Satin chrome, satin nickel, antique green, antique red, imitation gold, polished chrome
Installation method: Depends on door thickness, height, width, and weight; adjust according to actual conditions. Standard installation: 3 hinges per door. Doors exceeding 2300 mm in height require 4 hinges.
