Technical parameters:
Max door weight with 2 hinges：120kg
Maximum opening angle：180°
Minimum thickness of door leaf：45mm

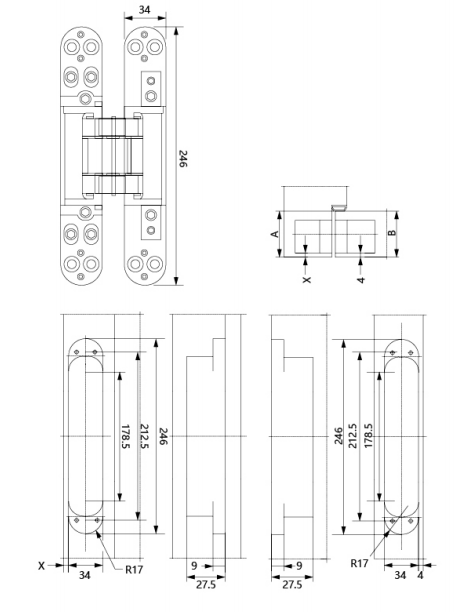

Product size：246x34mm
Main materials：Zinc alloy
Can achieve up and down adjustment of ±3.0mm, left and right adjustment of ±2.0mm, front and back adjustment of ±1.0mm
3D surface treatment：Black、Silver、AB、AC、GP、SC、SN
